Single Split

Indoor Unit

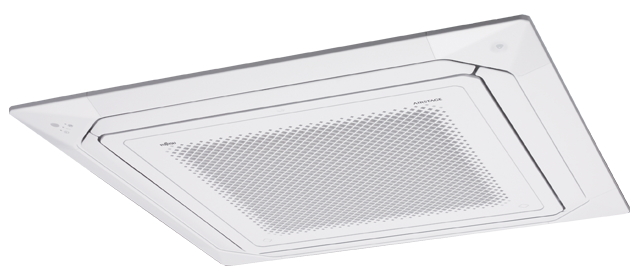

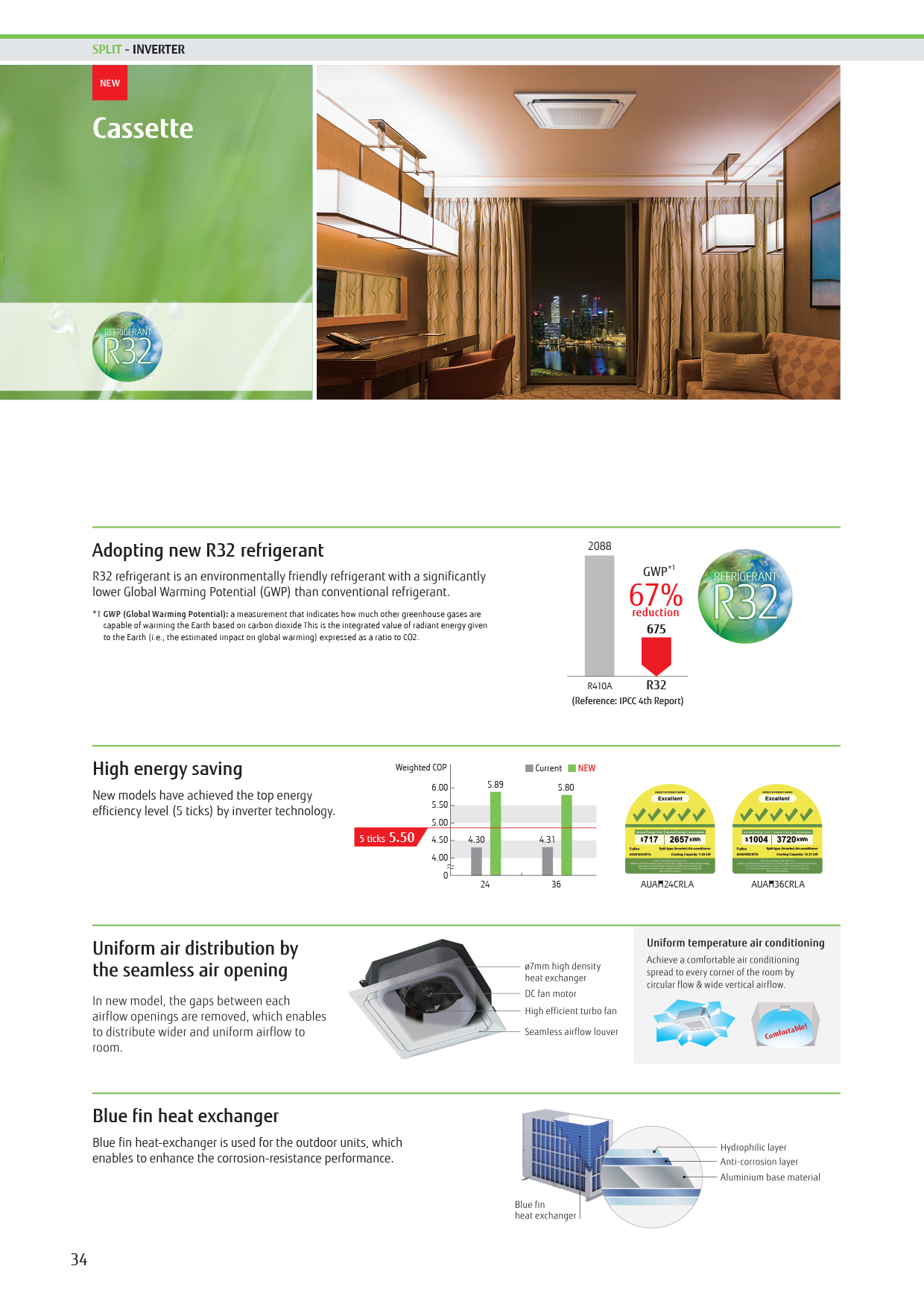

Compact Cassette Universal Type

•

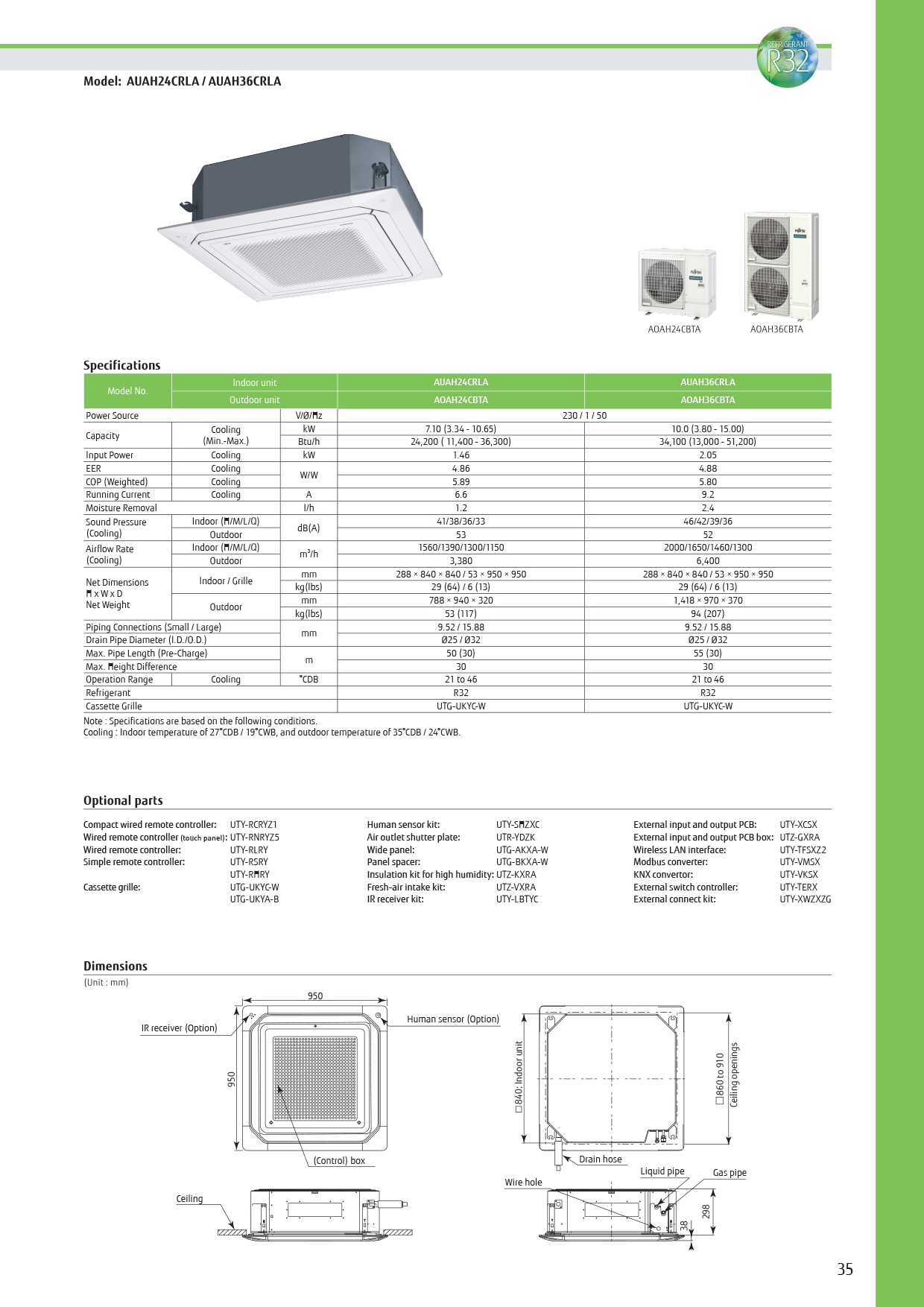

  AUAH24CRLA

  • (R) 7.10kW / (Max.) 10.65kW
  • (R) 24,200BTU/h / (Max.) 36,300BTU/h

  Dimension: H288 X W840 X D840 (mm)

  AUAH36CRLA

  • (R) 10.00kW / (Max.) 15.00kW
  • (R) 34,100BTU/h / (Max.) 51,200BTU/h

  Dimension: H288 X W840 X D840 (mm)
  FEATURE SPECIFICATION
•

  AUAG12LV

  • (R) 3.50kW / (Max.) 4.40kW
  • (R) 11,900BTU/h / (Max.) 15,000BTU/h

  Dimension: H245 X W570 X D570 (mm)

  AUAG18LV

  • (R) 5.20kW / (Max.) 5.90kW
  • (R) 17,700BTU/h / (Max.) 20,100BTU/h

  Dimension: H245 X W570 X D570 (mm)
  FEATURE SPECIFICATION
•

  AUAG24LR

  • (R) 7.10kW / (Max.) 10.00kW
  • (R) 24,200BTU/h / (Max.) 34,100BTU/h

  Dimension: H288 X W840 X D840 (mm)

  AUAG30LRLA

  • (R) 8.50kW / (Max.) 10.00kW
  • (R) 29,000BTU/h / (Max.) 34,100BTU/h

  Dimension: H288 X W840 X D840 (mm)

  AUAG36LRLC-A

  • ((R) 9.70kW / (Max.) 13.50kW
  • (R) 33,100BTU/h / (Max.) 46,100BTU/h

  Dimension: H288 X W840 X D840 (mm)
  FEATURE SPECIFICATION
•

  AUAG36LRLD-A

  • (R) 9.70kW / (Max.) 13.50kW
  • (R) 33,100BTU/h / (Max.) 46,100BTU/h

  Dimension: H288 X W840 X D840 (mm)

  AUAG45LRLD-A

  • (R) 11.70kW / (Max.) 14.00kW
  • (R) 39,900BTU/h / (Max.) 47,800BTU/h

  Dimension: H288 X W840 X D840 (mm)
  FEATURE SPECIFICATION

Indoor Unit

Duct Type

•

  ARAG12LL

  • (R) 3.50kW / (Max.) 4.40kW
  • (R) 11,900BTU/h / (Max.) 15,000BTU/h

  Dimension: H198 X W700 X D620 (mm)

  ARAG18LL

  • (R) 5.20kW / (Max.) 5.90kW
  • (R) 17,700BTU/h / (Max.) 20,100BTU/h

  Dimension: H198 X W900 X D620 (mm)
  FEATURE SPECIFICATION
•

  ARAG24LM

  • (R) 7.10kW / (Max.) 10.00kW
  • (R) 24,200BTU/h / (Max.) 34,100BTU/h

  Dimension: H270 X W1,135 X D700(mm)

  ARAG30LM

  • (R) 8.50kW / (Max.) 10.00kW
  • (R) 29,000BTU/h / (Max.) 34,100BTU/h

  Dimension: H270 X W1,135 X D700 (mm)

  ARAG36LM

  • (R) 9.40kW / (Max.) 11.20kW
  • (R) 32,100BTU/h / (Max.) 38,200BTU/h

  Dimension: H270 X W1,135 X D700 (mm)

  ARAG45LM

  • (R) 11.70kW / (Max.) 14.00kW
  • (R) 39,900BTU/h / (Max.) 47,800BTU/h

  Dimension: H270 X W1,135 X D700 (mm)
  FEATURE SPECIFICATION

Indoor Unit

Floor_Ceiling Universal Type

•

  ABAG18LV

  • (R) 5.20kW / (Max.) 5.90kW
  • (R) 17,700BTU/h / (Max.) 20,100BTU/h

  Dimension: H199 X W990 X D655 (mm)
  FEATURE SPECIFICATION
•

  ABAG30LR

  • (R) 8.50kW / (Max.) 10.00kW
  • (R) 29,000BTU/h / (Max.) 34,100BTU/h

  Dimension: H240 X W1,660 X D700 (mm)

  ABAG36LR

  • (R) 9.70kW / (Max.) 13.50kW
  • (R) 33,100BTU/h / (Max.) 46,100BTU/h

  Dimension: H240 X W1,660 X D700 (mm)

  ABAG45LR

  • ((R) 11.70kW / (Max.) 14.00kW
  • (R) 39,900BTU/h / (Max.) 47,800BTU/h

  Dimension: H240 X W1,660 X D700 (mm)
  FEATURE SPECIFICATION

Indoor Unit

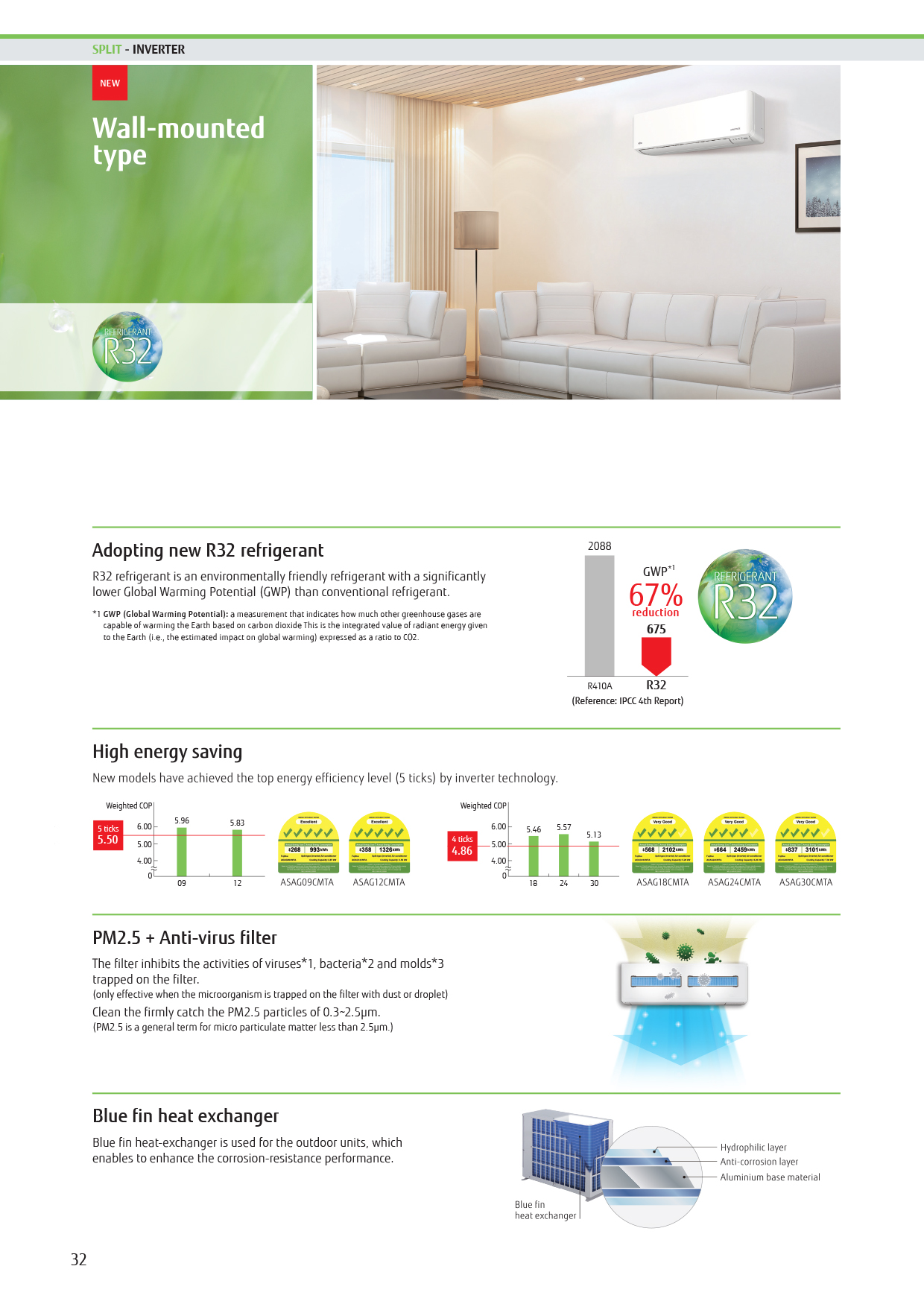

Wall Mount Type

•

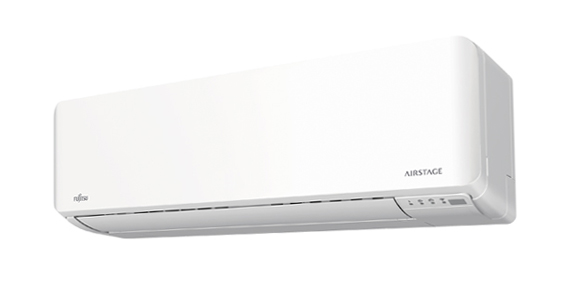

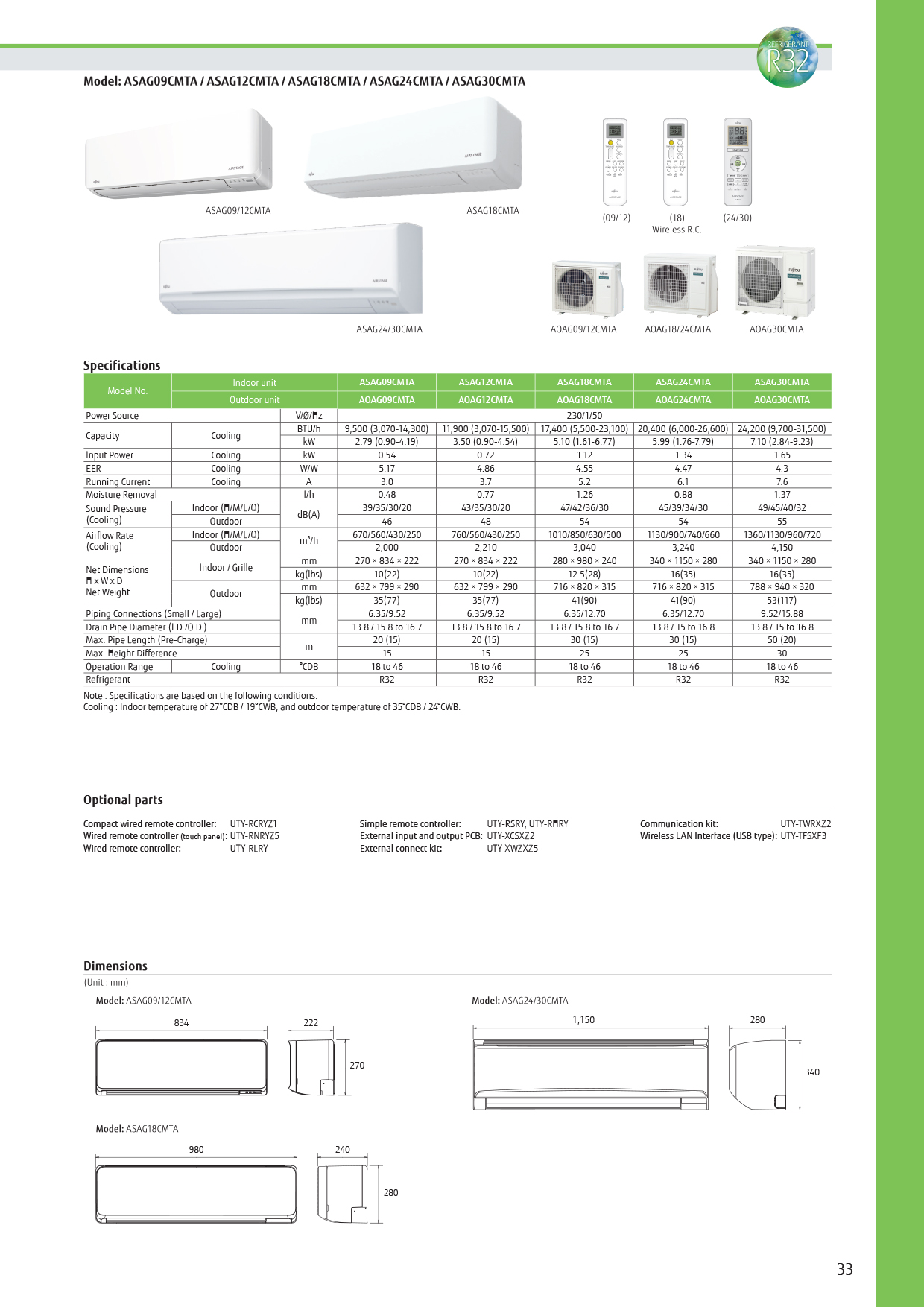

  ASAG09CMTA

  • (R) 2.79kW / (Max.) 4.19kW
  • (R) 9,500BTU/h / (Max.) 14,300BTU/h

  Dimension: H270 X W834 X D222 (mm)

  ASAG12CMTA

  • (R) 3.50kW / (Max.) 4.54kW
  • (R) 11,900BTU/h / (Max.) 15,500BTU/h

  Dimension: H270 X W834 X D222 (mm)
  FEATURE SPECIFICATION
•

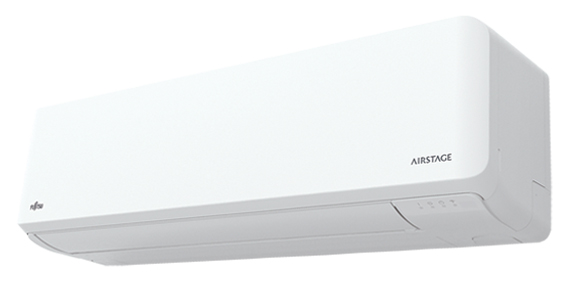

  ASAG18CMTA

  • (R) 5.10kW / (Max.) 6.77kW
  • (R) 17,400BTU/h / (Max.) 23,100BTU/h

  Dimension: H280 X W980 X D240 (mm)
  FEATURE SPECIFICATION
•

  ASAG24CMTA

  • (R) 5.99kW / (Max.) 7.79kW
  • (R) 20,400BTU/h / (Max.) 26,600BTU/h

  Dimension: H340 X W1,150 X D280 (mm)

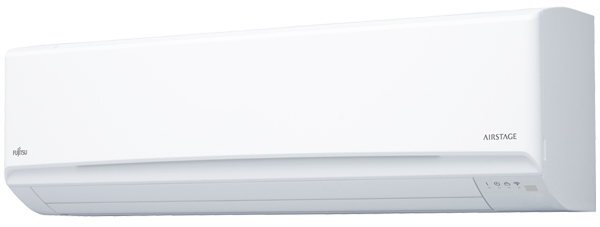

  ASAG30CMTA

  • (R) 7.10kW / (Max.) 9.23kW
  • (R) 24,200BTU/h / (Max.) 31,500BTU/h

  Dimension: H340 X W1,150 X D280 (mm)
  FEATURE SPECIFICATION
•

  ASYG09LU

  • (R) 2.50kW / (Max.) 3.20kW
  • (R) 8,500BTU/h / (Max.) 10,900BTU/h

  Dimension: H282 X W870 X D185 (mm)

  ASYG12LU

  • (R) 3.50kW / (Max.) 4.00kW
  • (R) 11,900BTU/h / (Max.) 13,600BTU/h

  Dimension: H282 X W870 X D185 (mm)
  FEATURE SPECIFICATION
•

  ASAG09LM

  • (R) 2.50kW / (Max.) 3.20kW
  • (R) 8,500BTU/h / (Max.) 10,900BTU/h

  Dimension: H268 X W840 X D203 (mm)

  ASAG12LM

  • (R) 3.50kW / (Max.) 4.00kW
  • (R) 11,900BTU/h / (Max.) 13,600BTU/h

  Dimension: H268 X W840 X D203 (mm)
  FEATURE SPECIFICATION
•

  ASAG18JFCB

  • (R) 5.20kW / (Max.) 8.00kW
  • (R) 17,700BTU/h / (Max.) 27,300BTU/h

  Dimension: H320 X W998 X D238 (mm)

  ASAG24JFCB

  • (R) 6.00kW / (Max.) 8.00kW
  • (R) 20,500BTU/h / (Max.) 27,300BTU/h

  Dimension: H320 X W998 X D238 (mm)
  FEATURE SPECIFICATION
•

  ASAG30JFTB

  • (R) 7.30kW / (Max.) 9.00kW
  • (R) 24,900BTU/h / (Max.) 30,700BTU/h

  Dimension: H340 X W1,150 X D280 (mm)
  FEATURE SPECIFICATION

Outdoor Unit

Compact Cassette Universal Type

•

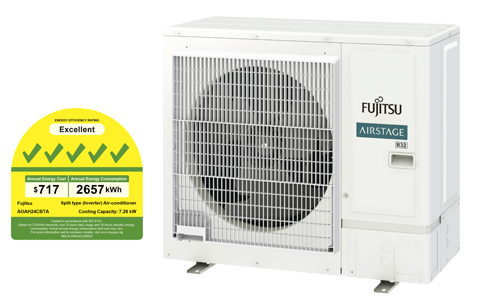

  AOAH24CBTA

  • (R) 7.10kW / (Max.) 10.65kW
  • (R) 24,200BTU/h / (Max.) 36,300BTU/h

  Dimension: H788 X W940 X D320 (mm)
  SPECIFICATION
•

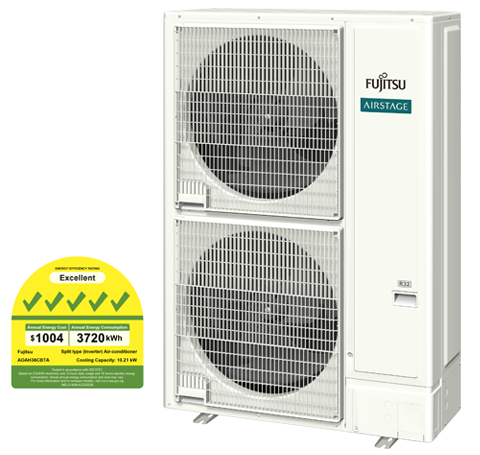

  AOAH36CBTA

  • (R) 10.00kW / (Max.) 15.00kW
  • (R) 34,100BTU/h / (Max.) 51,200BTU/h

  Dimension: H1,418 X W970 X D370 (mm)
  SPECIFICATION
•

  AOAG12LB

  • (R) 3.50kW / (Max.) 4.40kW
  • (R) 11,900BTU/h / (Max.) 15,000BTU/h

  Dimension: H578 X W790 X D300 (mm)
  SPECIFICATION
•

  AOAG18LB

  • (R) 5.20kW / (Max.) 5.90kW
  • (R) 17,700BTU/h / (Max.) 20,100BTU/h

  Dimension: H578 X W790 X D300 (mm)
  SPECIFICATION
•

  AOAG24LB

  • (R) 7.10kW / (Max.) 10.00kW
  • (R) 24,200BTU/h / (Max.) 34,100BTU/h

  Dimension: H830 X W900 X D330 (mm)
  SPECIFICATION
•

  AOAG30LB

  • (R) 8.50kW / (Max.) 10.00kW
  • (R) 29,000BTU/h / (Max.) 34,100BTU/h

  Dimension: H830 X W900 X D330 (mm)
  SPECIFICATION
•

  AOAG36LBTC-A

  • (R) 9.70kW / (Max.) 13.50kW
  • (R) 33,100BTU/h / (Max.) 46,100BTU/h

  Dimension: H1,290 X W900 X D330 (mm)
  SPECIFICATION
•

  AOAG45LBTC-A

  • (R) 11.70kW / (Max.) 14.00kW
  • (R) 39,900BTU/h / (Max.) 47,800BTU/h

  Dimension: H1,290 X W900 X D330 (mm)
  SPECIFICATION

Outdoor Unit

Duct Type

•

  AOAG12LB

  • (R) 3.50kW / (Max.) 4.40kW
  • (R) 11,900BTU/h / (Max.) 15,000BTU/h

  Dimension: H578 X W790 X D300 (mm)
  SPECIFICATION
•

  AOAG18LB

  • (R) 5.20kW / (Max.) 5.90kW
  • (R) 17,700BTU/h / (Max.) 20,100BTU/h

  Dimension: H578 X W790 X D300 (mm)
  SPECIFICATION
•

  AOAG24LA

  • (R) 6.80kW / (Max.) 8.00kW
  • (R) 23,200BTU/h / (Max.) 27,300BTU/h

  Dimension: H578 X W790 X D315 (mm)
  SPECIFICATION
•

  AOAG30LB

  • (R) 8.50kW / (Max.) 10.00kW
  • (R) 29,000BTU/h / (Max.) 34,100BTU/h

  Dimension: H830 X W900 X D330 (mm)
  SPECIFICATION
•

  AOAG36LBTA

  • (R) 9.40kW / (Max.) 11.2kW
  • (R) 32,100BTU/h / (Max.) 38,200BTU/h

  Dimension: H830 X W900 X D330 (mm)
  SPECIFICATION
•

  AOAG36LBTC-A

  • (R) 9.70kW / (Max.) 13.50kW
  • (R) 33,100BTU/h / (Max.) 46,100BTU/h

  Dimension: H1,290 X W900 X D330 (mm)
  SPECIFICATION
•

  AOAG45LBTC-A

  • (R) 11.70kW / (Max.) 14.00kW
  • (R) 39,900BTU/h / (Max.) 47,800BTU/h

  Dimension: H1,290 X W900 X D330 (mm)
  SPECIFICATION

Outdoor Unit

Floor_Ceiling Universal Type

•

  AOAG18LB

  • (R) 5.20kW / (Max.) 5.90kW
  • (R) 17,700BTU/h / (Max.) 20,100BTU/h

  Dimension: H578 X W790 X D300 (mm)
  SPECIFICATION
•

  AOAG30LB

  • (R) 8.50kW / (Max.) 10.00kW
  • (R) 29,000BTU/h / (Max.) 34,100BTU/h

  Dimension: H830 X W900 X D330 (mm)
  SPECIFICATION
•

  AOAG36LBTC-A

  • (R) 9.70kW / (Max.) 13.50kW
  • (R) 33,100BTU/h / (Max.) 46,100BTU/h

  Dimension: H1,290 X W900 X D330 (mm)
  SPECIFICATION
•

  AOAG45LBTC-A

  • (R) 11.70kW / (Max.) 14.00kW
  • (R) 39,900BTU/h / (Max.) 47,800BTU/h

  Dimension: H1,290 X W900 X D330 (mm)
  SPECIFICATION

Outdoor Unit

Wall Mount Type

•

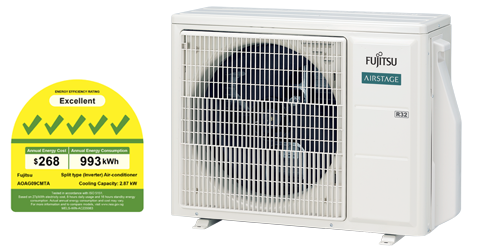

  AOAG09CMTA

  • (R) 2.79kW / (Max.) 4.19kW
  • (R) 9,500BTU/h / (Max.) 14,300BTU/h

  Dimension: H632 X W799 X D290 (mm)
  SPECIFICATION
•

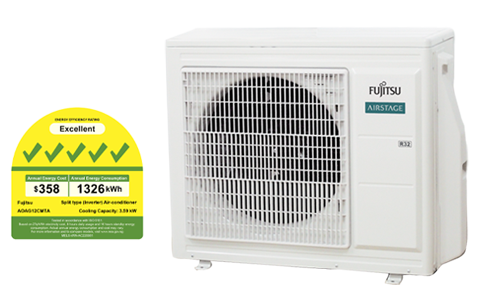

  AOAG12CMTA

  • (R) 3.50kW / (Max.) 4.54kW
  • (R) 11,900BTU/h / (Max.) 15,500BTU/h

  Dimension: H632 X W799 X D290 (mm)
  SPECIFICATION
•

  AOAG18CMTA

  • (R) 5.10kW / (Max.) 6.77kW
  • (R) 17,400BTU/h / (Max.) 23,100BTU/h

  Dimension: H716 X W820 X D315 (mm)
  SPECIFICATION
•

  AOAG24CMTA

  • (R) 5.99kW / (Max.) 7.79kW
  • (R) 20,400BTU/h / (Max.) 26,600BTU/h

  Dimension: H716 X W820 X D315 (mm)
  SPECIFICATION
•

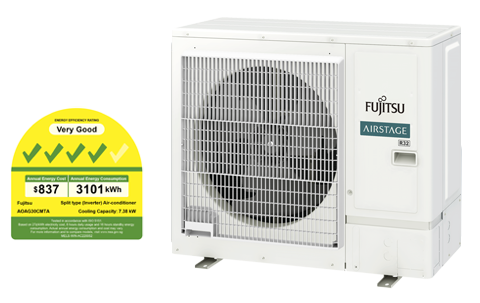

  AOAG30CMTA

  • (R) 7.10kW / (Max.) 9.23kW
  • (R) 24,20BTU/h / (Max.) 31,500BTU/h

  Dimension: H788 X W940 X D320 (mm)
  SPECIFICATION
•

  AOYG09LU

  • (R) 2.50kW / (Max.) 3.20kW
  • (R) 8,500BTU/h / (Max.) 10,900BTU/h

  Dimension: H540 X W660 X D290 (mm)
  SPECIFICATION
•

  AOYG12LU

  • (R) 3.50kW / (Max.) 4.00kW
  • (R) 11,900BTU/h / (Max.) 13,600BTU/h

  Dimension: H540 X W790 X D290 (mm)
  SPECIFICATION
•

  AOAR09JG

  • (R) 2.50kW / (Max.) 3.20kW
  • (R) 8,500BTU/h / (Max.) 10,900BTU/h

  Dimension: H540 X W660 X D290 (mm)
  SPECIFICATION
•

  AOAR12JG

  • (R) 3.50kW / (Max.) 4.00kW
  • (R) 11,900BTU/h / (Max.) 13,600BTU/h

  Dimension: H540 X W660 X D290 (mm)
  SPECIFICATION
•

  AOAG18JFCB

  • (R) 5.20kW / (Max.) 8.00kW
  • (R) 17,700BTU/h / (Max.) 27,300BTU/h

  Dimension: H620 X W790 X D290 (mm)
  SPECIFICATION
•

  AOAG24JFCB

  • (R) 6.00kW / (Max.) 8.00kW
  • (R) 20,500BTU/h / (Max.) 27,300BTU/h

  Dimension: H620 X W790 X D290 (mm)
  SPECIFICATION
•

  AOAG30JFTB

  • (R) 7.30kW / (Max.) 9.00kW
  • (R) 24,900BTU/h / (Max.) 30,700BTU/h

  Dimension: H830 X W900 X D330 (mm)
  SPECIFICATION
