Multi-Split 2 to 4

Indoor Unit

Wall Mount Type

•

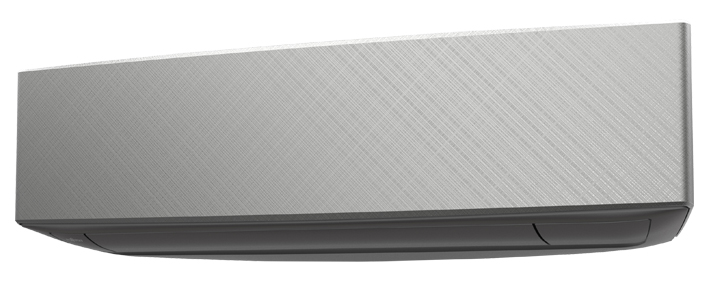

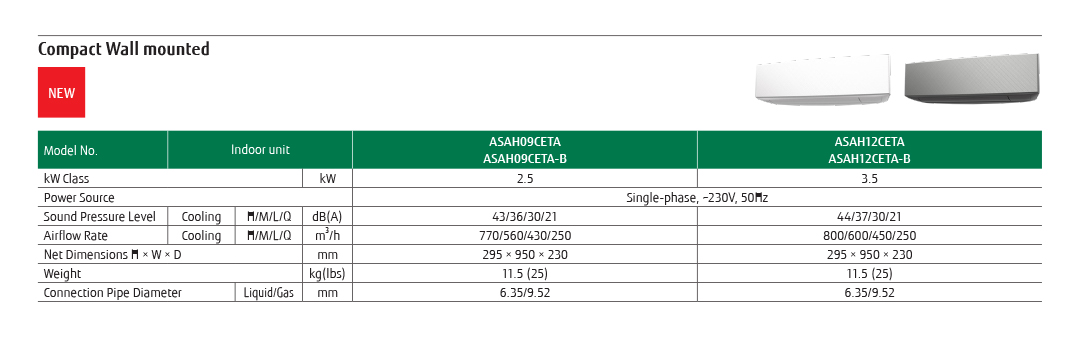

  ASAH09CETA-B

  • (R) 2.50kW / (Max.) 3.40kW
  • (R) 8,500BTU/h / (Max.) 11,600BTU/h

  Dimension: H295 X W950 X D230 (mm)

  ASAH12CETA-B

  • (R) 3.50kW / (Max.) 3.80kW
  • (R) 11,900BTU/h / (Max.) 13,000BTU/h

  Dimension: H295 X W950 X D230 (mm)
  SPECIFICATION
•

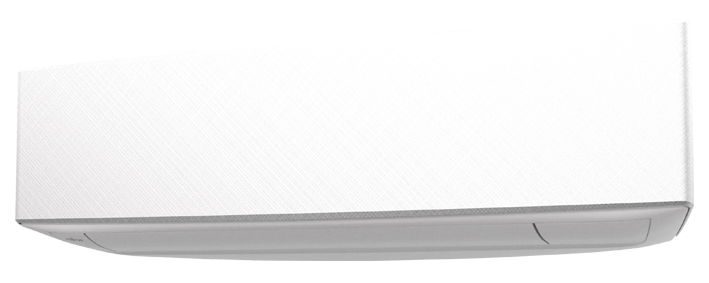

  ASAH09CETA

  • (R) 2.50kW / (Max.) 3.40kW
  • (R) 8,500BTU/h / (Max.) 11,600BTU/h

  Dimension: H295 X W950 X D230 (mm)

  ASAH12CETA

  • (R) 3.50kW / (Max.) 3.80kW
  • (R) 11,900BTU/h / (Max.) 13,000BTU/h

  Dimension: H295 X W950 X D230 (mm)
  SPECIFICATION
•

  ASAH09CMTA

  • (R) 2.50kW / (Max.) 3.40kW
  • (R) 8,500BTU/h / (Max.) 11,600BTU/h

  Dimension: H270 X W834 X D222 (mm)

  ASAH12CMTA

  • (R) 3.50kW / (Max.) 3.80kW
  • (R) 11,900BTU/h / (Max.) 13,000BTU/h

  Dimension: H270 X W834 X D222 (mm)
  SPECIFICATION
•

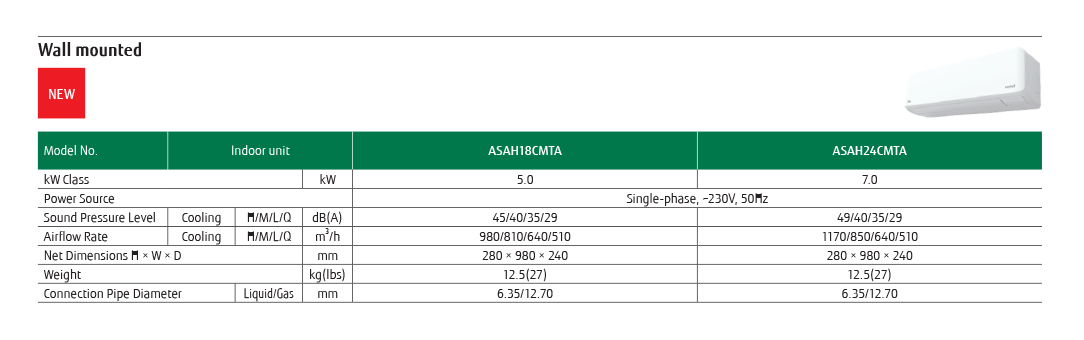

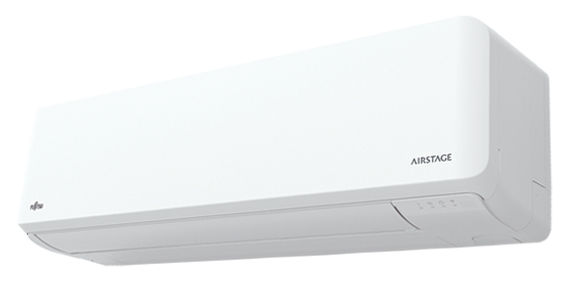

  ASAH18CMTA

  • (R) 5.00kW / (Max.) 6.00kW
  • (R) 17,000BTU/h / (Max.) 20,500BTU/h

  Dimension: H280 X W980 X D240 (mm)

  ASAH24CMTA

  • (R) 6.80kW / (Max.) 7.40kW
  • (R) 23,200BTU/h / (Max.) 25,300BTU/h

  Dimension: H280 X W980 X D240 (mm)
  SPECIFICATION
•

  ASAG18LF

  • (R) 5.00kW / (Max.) 6.00kW
  • (R) 17,000BTU/h / (Max.) 20,500BTU/h

  Dimension: H320 X W998 X D238 (mm)

  ASAG24LF

  • (R) 6.80kW / (Max.) 7.40kW
  • (R) 23,200BTU/h / (Max.) 25,200BTU/h

  Dimension: H320 X W998 X D238 (mm)
  FEATURE SPECIFICATION
•

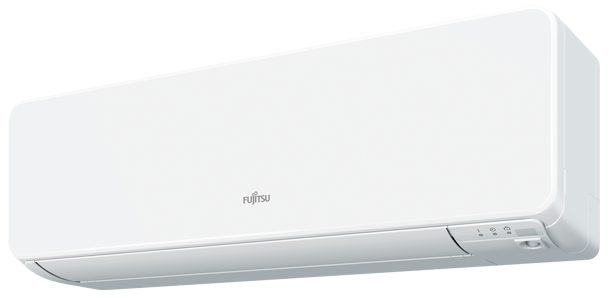

  ASAG09JG

  • (R) 2.70kW / (Max.) 3.30kW
  • (R) 9,200BTU/h / (Max.) 11,200BTU/h

  Dimension: H270 X W834 X D215 (mm)

  ASAG12JG

  • (R) 3.50kW / (Max.) 3.70kW
  • (R) 11,900BTU/h / (Max.) 12,600BTU/h

  Dimension: H270 X W834 X D215 (mm)
  FEATURE SPECIFICATION
•

  ASAG07LM

  • (R) 2.10kW / (Max.) 2.70kW
  • (R) 7,200BTU/h / (Max.) 9,200BTU/h

  Dimension: H282 X W870 X D185 (mm)

  ASAG09LM

  • (R) 2.50kW / (Max.) 3.40kW
  • (R) 8,500BTU/h / (Max.) 11,600BTU/h

  Dimension: H282 X W870 X D185 (mm)

  ASAG12LM

  • (R) 3.50kW / (Max.) 3.80kW
  • (R) 11,900BTU/h / (Max.) 13,000BTU/h

  Dimension: H282 X W870 X D185 (mm)
  FEATURE SPECIFICATION

Indoor Unit

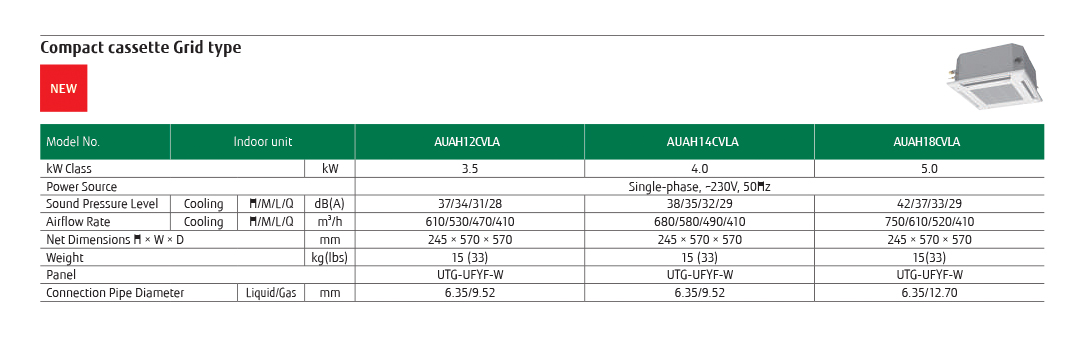

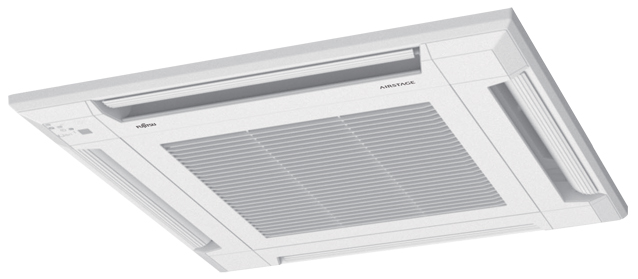

Compact Cassette Grid Type

•

  AUAH12CVLA

  • (R) 3.50kW / (Max.) 3.80kW
  • (R) 11,900BTU/h / (Max.) 13,000BTU/h

  Dimension: H245 X W570 X D570 (mm)

  AUAH14CVLA

  • (R) 4.00kW / (Max.) 4.50kW
  • (R) 13,600BTU/h / (Max.) 15,400BTU/h

  Dimension: H245 X W570 X D570 (mm)

  AUAH18CVLA

  • (R) 5.00kW / (Max.) 6.00kW
  • (R) 17,000BTU/h / (Max.) 20,500BTU/h

  Dimension: H245 X W570 X D570 (mm)
  SPECIFICATION

Indoor Unit

Compact Cassette Type

•

  AUAG09LV

  • (R) 2.50kW / (Max.) 3.40kW
  • (R) 8,500BTU/h / (Max.) 11,600BTU/h

  Dimension: H245 X W570 X D570 (mm)

  AUAG12LV

  • (R) 3.50kW / (Max.) 3.80kW
  • (R) 11,900BTU/h / (Max.) 13,000BTU/h

  Dimension: H245 X W570 X D570 (mm)

  AUAG14LV

  • (R) 4.00kW / (Max.) 4.80kW
  • (R) 13,600BTU/h / (Max.) 16,400BTU/h

  Dimension: H245 X W570 X D570 (mm)

  AUAG18LV

  • (R) 5.00kW / (Max.) 6.00kW
  • (R) 17,000BTU/h / (Max.) 20,500BTU/h

  Dimension: H245 X W570 X D570 (mm)
  FEATURE SPECIFICATION

Indoor Unit

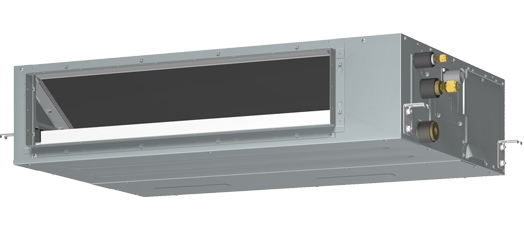

Medium Static Pressure Duct Type

•

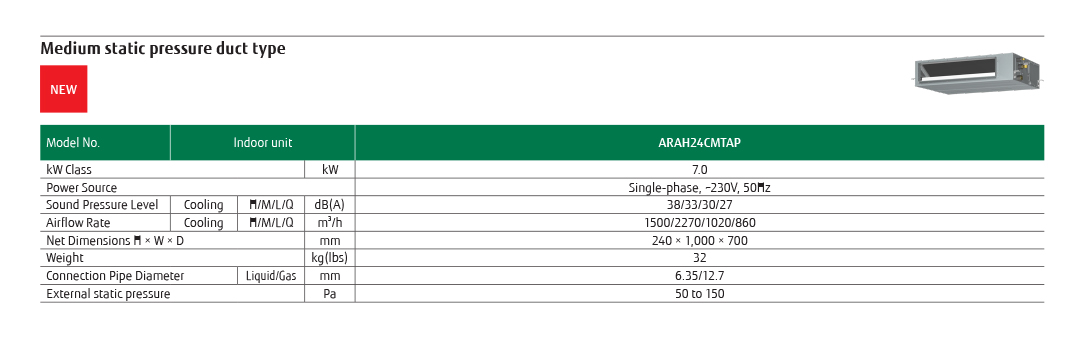

  ARAH24CMTAP

  • (R) 6.80kW / (Max.) 7.40kW
  • (R) 23,200BTU/h / (Max.) 25,300BTU/h

  Dimension: H240 X W1000 X D700 (mm)
  SPECIFICATION

Indoor Unit

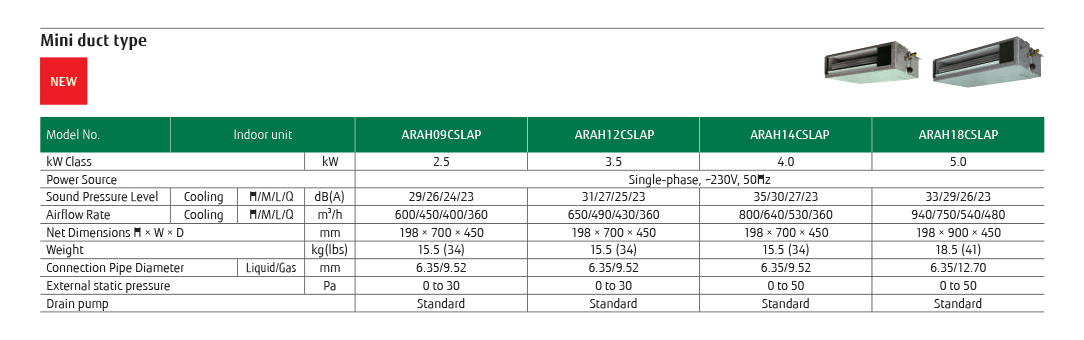

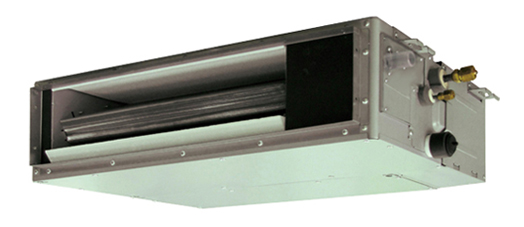

Mini Duct Type

•

  ARAH09CSLAP

  • (R) 2.70kW / (Max.) 3.30kW
  • (R) 9,200BTU/h / (Max.) 11,300BTU/h

  Dimension: H198 X W700 X D450 (mm)

  ARAH12CSLAP

  • (R) 3.50kW / (Max.) 3.70kW
  • (R) 11,900BTU/h / (Max.) 12,600BTU/h

  Dimension: H198 X W700 X D450 (mm)

  ARAH14CSLAP

  • (R) 4.20kW / (Max.) 4.80kW
  • (R) 14,300BTU/h / (Max.) 16,400BTU/h

  Dimension: H198 X W700 X D450 (mm)
  SPECIFICATION
•

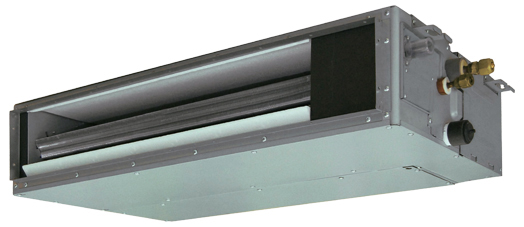

  ARAH18CSLAP

  • (R) 5.00kW / (Max.) 5.60kW
  • (R) 17,100BTU/h / (Max.) 19,100BTU/h

  Dimension: H198 X W900 X D450 (mm)
  SPECIFICATION

Indoor Unit

Slim Duct Type

•

  ARAG09LL

  • (R) 2.50kW / (Max.) 3.40kW
  • (R) 8,500BTU/h / (Max.) 11,600BTU/h

  Dimension: H198 X W700 X D620 (mm)

  ARAG12LL

  • (R) 3.50kW / (Max.) 3.80kW
  • (R) 11,900BTU/h / (Max.) 13,000BTU/h

  Dimension: H198 X W700 X D620 (mm)

  ARAG14LL

  • (R) 4.00kW / (Max.) 4.80kW
  • (R) 13,600BTU/h / (Max.) 16,400BTU/h

  Dimension: H198 X W700 X D620 (mm)

  ARAG18LL

  • (R) 5.00kW / (Max.) 6.00kW
  • (R) 17,000BTU/h / (Max.) 20,500BTU/h

  Dimension: H198 X W900 X D620 (mm)

  ARAG24LL

  • (R) 6.80kW / (Max.) 7.40kW
  • (R) 23,200BTU/h / (Max.) 25,200BTU/h

  Dimension: H198 X W1100 X D620 (mm)
  FEATURE SPECIFICATION

Outdoor Unit

Multi Split Type

•

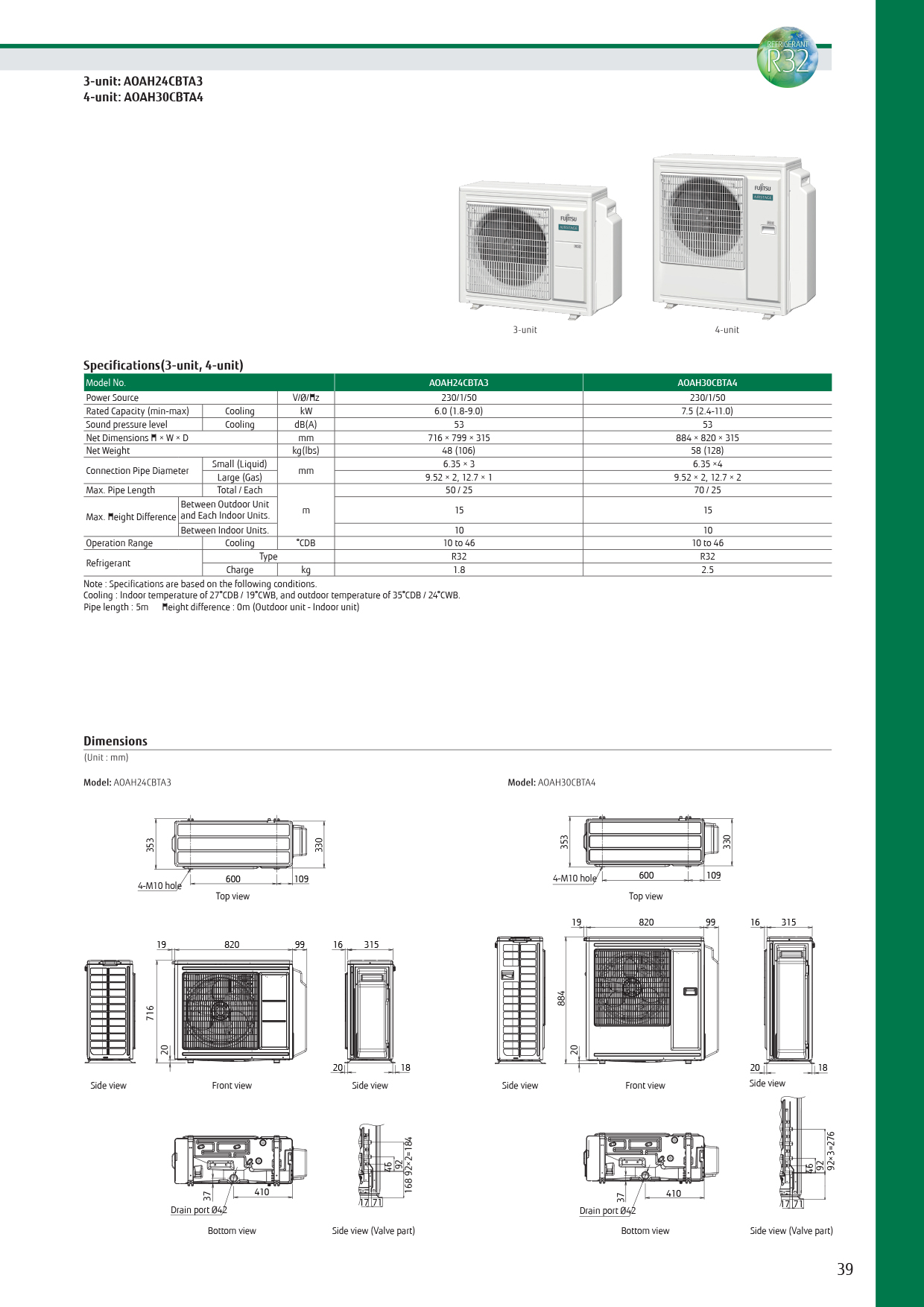

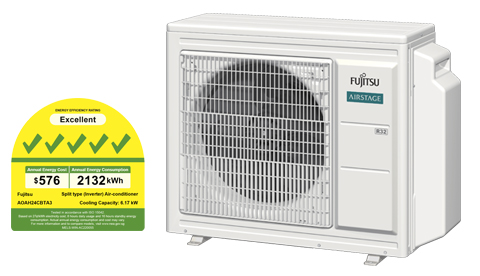

  AOAH 24CBTA3

  • (R) 6.00KW / 9.00(Max.) kW
  • (R) 20,500BTU/h / (Max.) 30,700BTU/h

  Dimension: H716 X W799 X D315 (mm)
  FEATURE SPECIFICATION
•

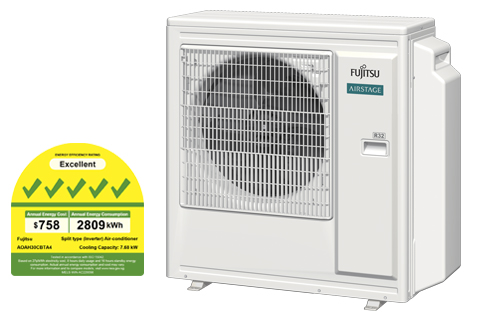

  AOAH 30CBTA4

  • (R) 7.50KW / (Max.) 11.00kW
  • (R) 25,600BTU/h / (Max.) 37,500BTU/h

  Dimension: H884 X W820 X D315 (mm)
  FEATURE SPECIFICATION
•

  AOAG 28JBTA3

  • (R) 5.30KW / (Max.) 8.50kW
  • (R) 18,100BTU/h / (Max.) 29,000BTU/h

  Dimension: H700 X W900 X D330 (mm)
  SPECIFICATION
•

  AOAG 28JBTA4

  • (R) 5.70KW / (Max.) 8.50kW
  • (R) 19,400BTU/h / (Max.) 29,000BTU/h

  Dimension: H700 X W900 X D330 (mm)
  SPECIFICATION
•

  AOAG 30LAT4

  • (R) 8.00kW / (Max.) 10.10kW
  • (R) 27,300BTU/h / (Max.) 34,500BTU/h

  Dimension: H830 X W900 X D330 (mm)
  SPECIFICATION
